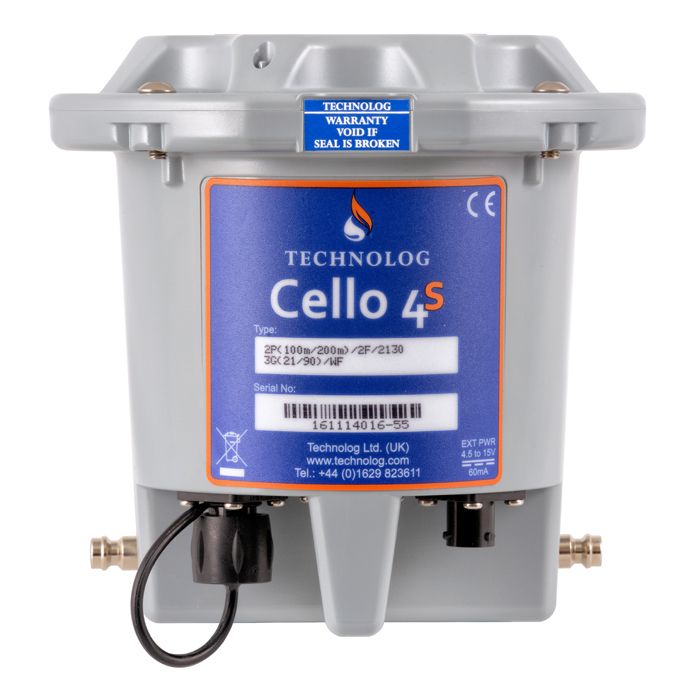

Cello 4S
Technolog
Stand: F4
Multiple site parameters are monitored, recorded and transmitted over cellular communication, providing a comprehensive multi-application solution for the Utilities and Industry.
Key Features
- Build options for up to two pressure, eight user programmable digital or analogue inputs and two individually switched 12 Volt outputs for powering 4-20mA loops
- Proven bidirectional Cello communication with automatic gap filling ensuring high level data reliability and supporting remote product configuration
- Remote set-up, monitoring and control through locally deployed PMAC software or web based WaterCore platform
- Facilitates closed loop control of pressure reducing valves, pressure sustaining valves and variable speed pumps
- Water temperature measurement
- Advanced channel profile and threshold alarms
- High frequency (100 Hz) pressure transient detection critical to extending asset life and network modelling
- Low power design provides typically > five years battery life.
- Rugged, portable and waterproof to IP68
- The Cello 4S is WITS compatible and verified
Typical remote monitoring applications include, but not limited to:
- Transmission: Supply Pressure, Transient Recording, Flow
- Pressure Managed Areas: Advanced Pressure Control, Control Valve Stability, Distribution Flow, Average Zonal Pressure, Levels of service, Water Temperature, Step Testing
- District Metered Areas: Flow, Automated Meter Reading
- Effluent and Waste Water: Sewer Level, Discharge consent levels, Open Channel Flow dissolved Oxygen, Hydrogen Sulphide, Turbidity
- Reservoirs & Storage Tanks: Level and Overflow
- Rivers and Streams: Flood Warnings, Flow, Water Quality
- Weather: Rainfall, Humidity, Temperature and Wind speed
- Farming & Irrigation: Soil Moisture
- Pumping Stations: Pressure Control, Duty Cycle, Run time, Status and Efficiency
- Water Extraction & Wells: Level, pH
- Water Treatment Plant: Water Quality, Chlorine Dosing, Turbidity,
- Power & Energy: 3-Phase supplies, Current consumption, Metering
- Customer Service: Levels of service, low pressure complaints, data access over the Web
- Rivers and Streams: Flood Warnings, Flow, Water Quality
