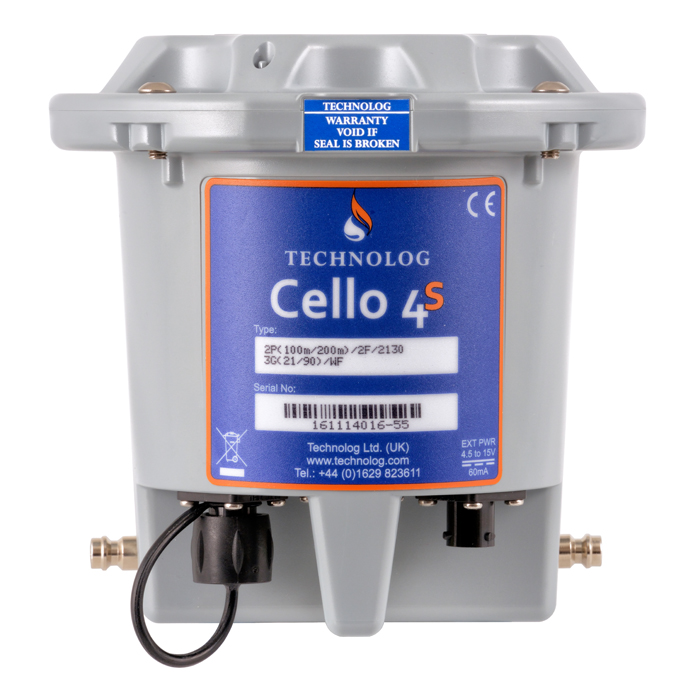

Cello 4S – Remote monitoring solution

The Cello 4S is a remote telemetry outstation delivering a scalable machine to machine (M2M) solution reducing user operating and capital costs.

Multiple site parameters are monitored, recorded and transmitted over 2G (SMS/GPRS) or 3G networks, providing a comprehensive multi-application solution for the Utilities and Industry.

Key Features

• The Cello 4S has build options for up to two pressure, eight user programmable digital or analogue inputs and two individually switched 12 Volt outputs for powering 4-20mA loops
• Easily set-up using Technolog’s innovative optional WiFi communication interface
• Proven bidirectional Cello communication with automatic gap filling ensuring high level data reliability and supporting remote product configuration
• Remote set-up, monitoring and control through locally deployed PMAC software or web based WaterCore platform
• Advanced channel profile and threshold alarms
• High frequency pressure transient detection critical to extending asset life and network modelling
• Facilitates closed loop control of pressure reducing valves, pressure sustaining valves and variable speed pumps
• High accuracy battery monitoring optimising maintenance and asset management programmes
• Integral movement detection aiding preventative maintenance routines, asset tracking and enhanced data integrity critical for reporting
• Low power design provides typically > 5 years battery life. Optional external powered unit with “always-on” capability
• Water temperature measurement
• Rugged, portable and waterproof to IP68
• The Cello 4S is WITS compatible and verified

Typical remote monitoring applications include, but not limited to:

• Transmission: Supply Pressure, Transient Recording, Flow
• Pressure Managed Areas: Advanced Pressure Control, Control Valve Stability, Distribution Flow, Average Zonal Pressure, Levels of service, Water Temperature, Step Testing
• District Metered Areas: Flow, Automated Meter Reading
• Effluent and Waste Water: Sewer Level, Discharge consent levels, Open Channel Flow dissolved Oxygen, Hydrogen Sulphide, Turbidity
• Reservoirs & Storage Tanks: Level and Overflow
• Rivers and Streams: Flood Warnings, Flow, Water Quality
• Weather: Rainfall, Humidity, Temperature and Wind speed
• Farming & Irrigation: Soil Moisture
• Pumping Stations: Pressure Control, Duty Cycle, Run time, Status and Efficiency
• Water Extraction & Wells: Level, pH
• Water Treatment Plant: Water Quality, Chlorine Dosing, Turbidity,
• Power & Energy: 3-Phase supplies, Current consumption, Metering
• Customer Service: Levels of service, low pressure complaints, data access over the Web
• Rivers and Streams: Flood Warnings, Flow, Water Quality
