Passerelle Pedestrian Footbridge

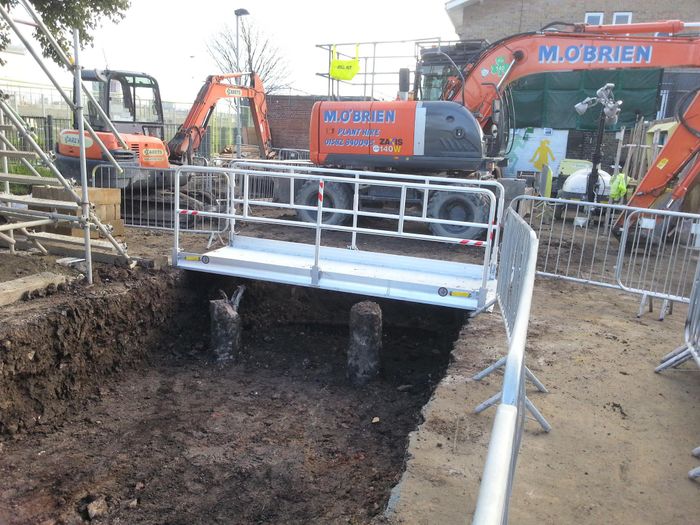

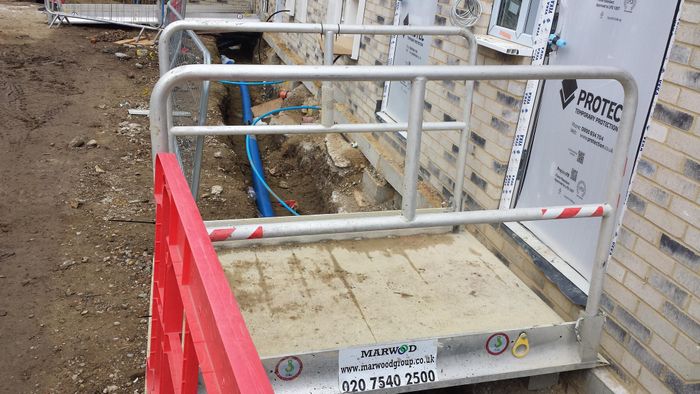

Aluminium units that are ideal for covering trenches as a foot bridge, comes with anti-slip surface and high toe board for safer protection. Available in 2m, 4m and 6m lengths.

Length 2m 4m 6m
Overall Height 1239mm 1239mm 1239mm
Width (Approx) 1300mm 1300mm 1300mm
Weight 72kg 142kg 207kg
Max. Distributed Load 1850kg 1500kg 850kg
