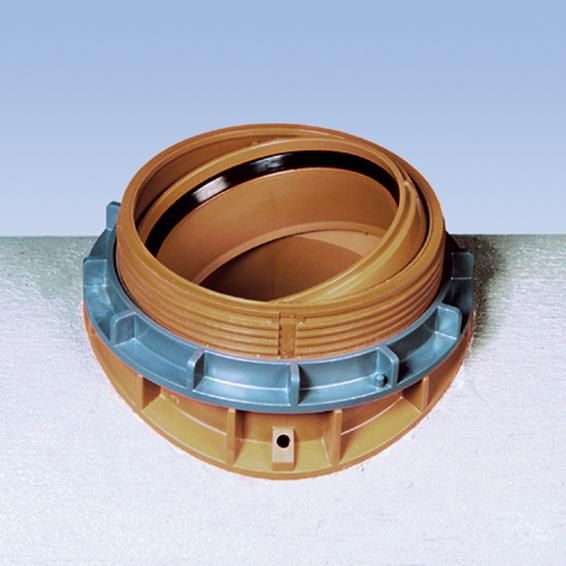

The Fabekun Junction With Adjustable Socket

The FABEKUN® Junction with DN/OD 160 and DN/OD 200
sockets are suitable for the connection to concrete or reinforced
concrete pipes (EN 1917) and – starting from a wall thickness
of 30 mm – also for clay pipes. Thanks to its three dimensional
seals it adapts ideally to the inner radius of the main pipe.
The adjustable socket allows the connection to be bend
within a range from 0° to 13° and compensates for the different
settlement behaviour of the main pipe and the lateral pipe.
Thus, the requirements of many national standards such as
DWA-A 139 are fulfilled.
Easy to handle, it is suitable for all regular pipe diameters
(DN 250 – DN 1800, with a DN 160 connection, DN 400 –
DN 2400 with a DN 200 connection).
