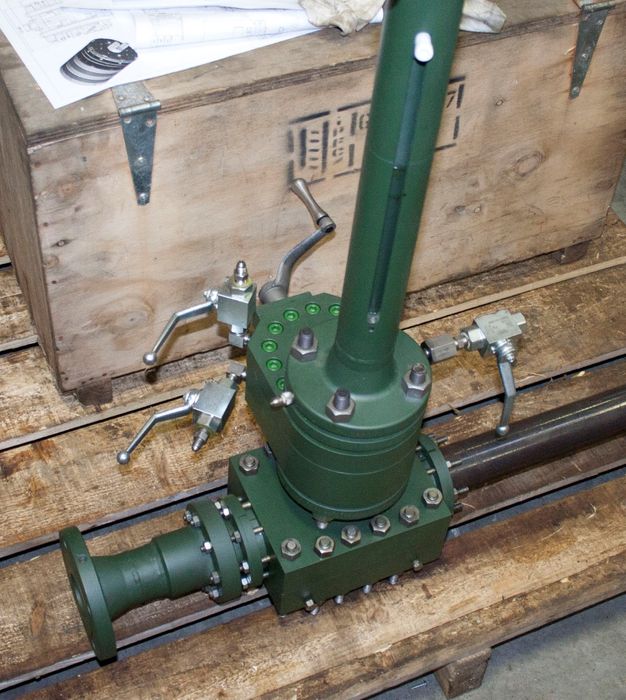

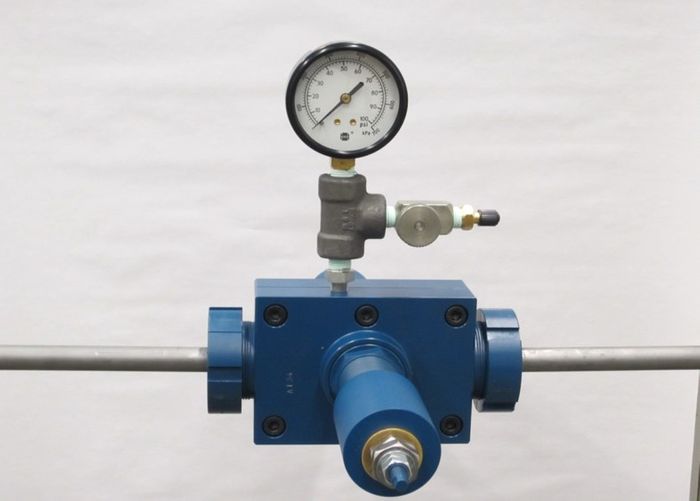

BI-STOP - Small Diameter Line Stop

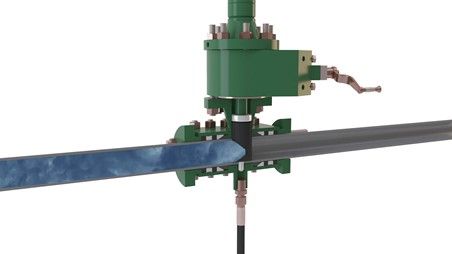

The patented BI-STOP™ solution provides a unique line stopping system. BI-STOP addresses challenges with small-bore pipework that have absent or limited isolation facilities. This cost-effective solution enables small-bore pipework to be isolated, cut and if required, terminated with a full-bore valve while the system remains live. BI-STOP allows maintenance or remediation activities to be carried out safely and reliably, eliminating the need for a system shutdown.

Operator Benefits

•       Cost-effective solution for temporary isolation of small-bore pipework eliminating the need for a system shutdown
•       Unplanned outage and maintenance costs are either eliminated or significantly reduced
•       No need to leave temporary mechanical fittings on the pipe
•       Temporary isolation allowing modifications without the need for hot-work
•       Innovative equipment design addresses pipe destruct and construct requirements including pipework reinstatement testing

Specification

• Size 1”, 1.5” & 2”
• Pressure 51.1 bar

Applications

• Provide a temporary isolation to facilitate pipework repair or modification
• Install a system specified full-bore valve where isolation facilities are absent or limited
• Cap and terminate dead leg or redundant pipework
• Provide a permanent or temporary pipework tie-in
