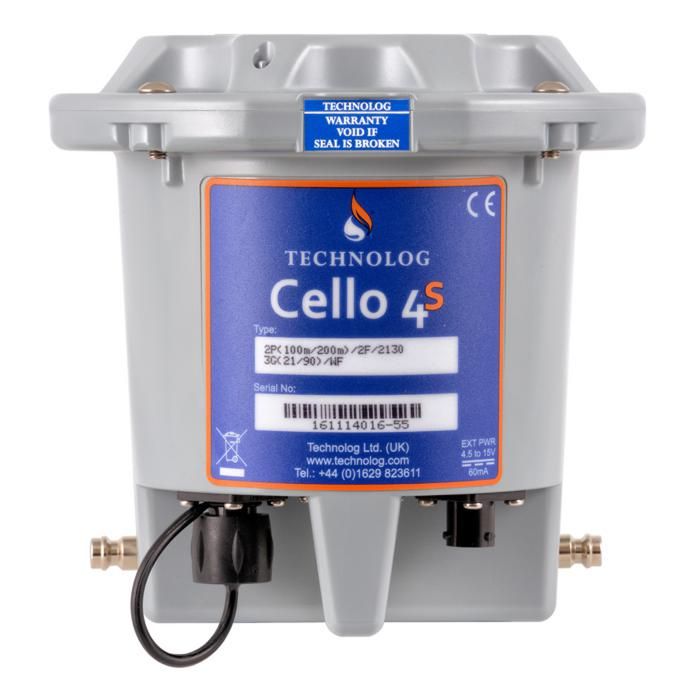

Cello 4S – Remote monitoring solution

Multiple site parameters are monitored, recorded and transmitted over 2G (SMS/GPRS) or 3G networks, providing a comprehensive multi-application solution for the Utilities and Industry.

Key Features

• Build options for up to two pressure, eight user programmable digital or analogue inputs and two individually switched 12 Volt outputs for powering 4-20mA loops
• Easily set-up using Technolog’s innovative optional WiFi communication interface
• Proven bidirectional Cello communication with automatic gap filling ensuring high level data reliability and supporting remote product configuration
• Remote set-up, monitoring and control through locally deployed PMAC software or web based WaterCore platform

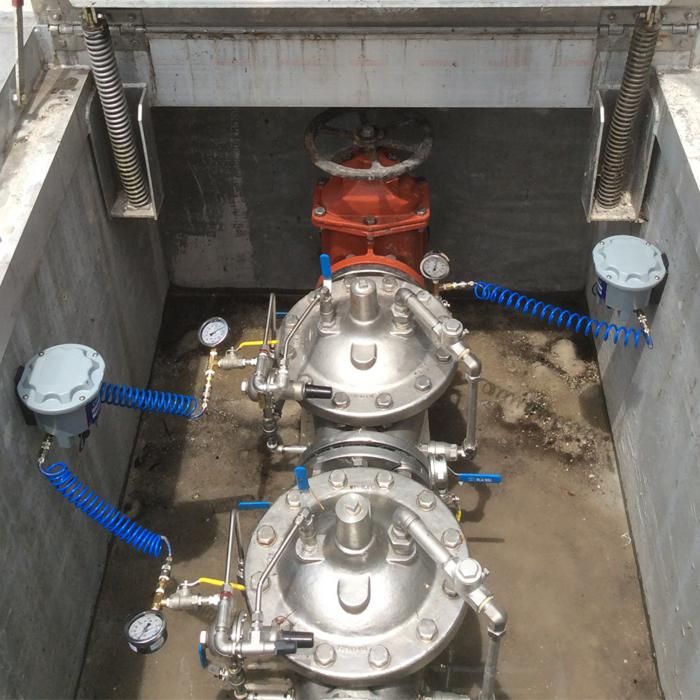

• Facilitates closed loop control of pressure reducing valves, pressure sustaining valves and variable speed pumps
• Water temperature measurement
• Advanced channel profile and threshold alarms
• High frequency (100 Hz) pressure transient detection critical to extending asset life and network modelling
• High accuracy battery monitoring optimising maintenance and asset management programmes
• Integral movement detection aiding preventative maintenance routines, asset tracking and enhanced data integrity critical for reporting
• Low power design provides typically > five years battery life. Support for external battery packs
• Rugged, portable and waterproof to IP68
• The Cello 4S is WITS compatible and verified
