Chemsafe Single and Dual Contained Drainage

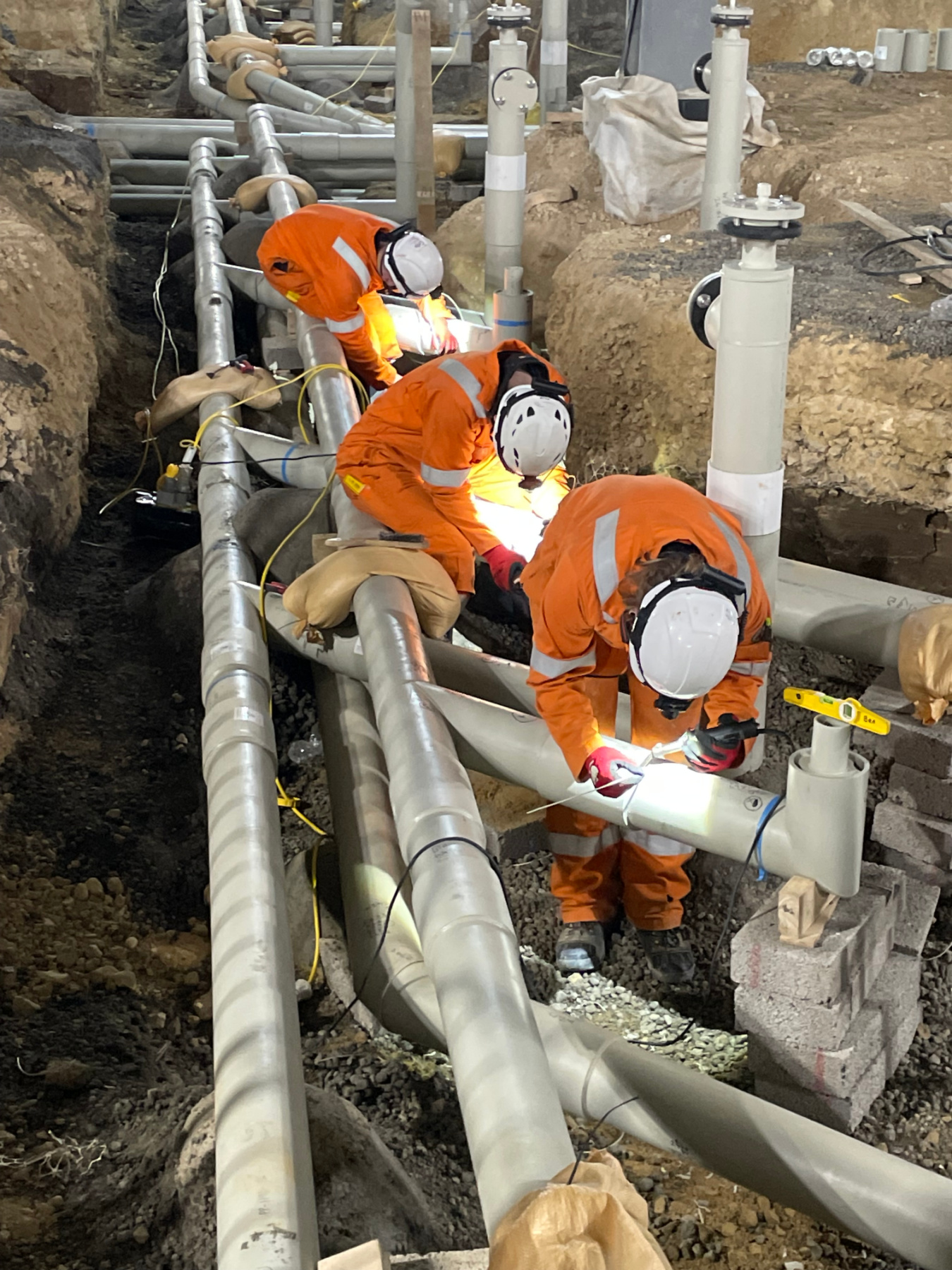

We manufacture and install the complete above and below ground Pipex Chemsafe single wall pipe and dual contained pipework system with associated manholes, holding tanks, pumping stations, floor drains and channels for various applications including industrial waste, pharmaceutical process waste and bio-waste containment.
Our Dual Contained system is used for Bio-Waste applications where a fully welded sealed system is required for the safe transmission of bio-hazardous fluids for high containment level ACDP CL2, CL3 and CL4 laboratory applications. Materials of manufacture include Homopolymer Polypropylene (PP-H), High Density Polyethylene (HDPE), Polyvinylidene Fluoride (PVDF).
Our systems are designed for maximum visual inspection and minimum physical man-entry maintenance, and we offer unique offsite manufacturing and integrity testing techniques, enabling site delivery of pre-assembled and pre-tested itemized pipe spools for fast-track installation with minimal site jointing required.*
Benefits
- Fully welded system with clear crevice free welded joints providing continuous smooth internal bores
- Bespoke and standard sizes factory-tailored to meet individual bio-security requirements
- Chambers manufactured offsite to suit project specific designs
- The material of manufacture can be pressure jetted to water Industry Specification WIS 4-35-01
- Designed for maximum visual inspection and minimum physical man-entry maintenance
- BBA HAPAS approved chambers
- Fully sealed, water, fluid, and gas-tight chambers
- Smooth internal and external bores preventing the build-up of fat, oil, and grease (FOG's)
- Extreme corrosion and chemical resistance
- Virtually maintenance-free
Suitable Applications
- Pharmaceutical
- Food Processing
- Brewery and Soft Drinks
- Industrial Waste
- Animal research facilities
Materials of Manufacture
- Thermoplastic Homopolymer Polypropylene (PP-H)
- High Density Polyethylene (HDPE)
- Polyvinylidene Fluoride PVDF
- Chlorinated polyvinyl chloride (PVC-C)
